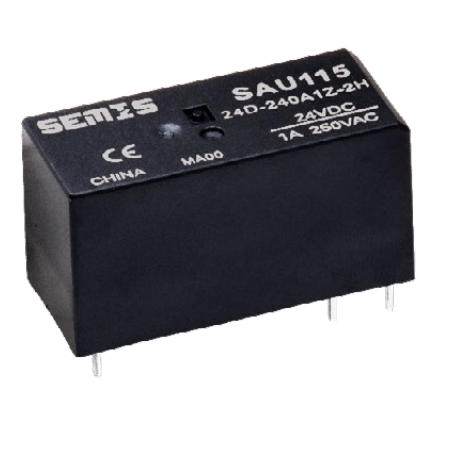

No.11 |  SAU115 EMR pin compatible SSR

No.11 |  SAU115 EMR pin compatible SSR

● Product appearance and pin size are fully compatible with 115F EMR
● Output arrangement: 1 Form A,2 Form A
● Excellent electrical endurance performance, reaching over 10 million cycles
● Load capacity:240VAC/1A,380VAC/2A,380VAC/3A,48VDC/5A
Load voltage 24VDC,48VDC,240VAC,380VAC
Load current 1A,2A,3A,5A
Product details

‍‍‍Click here and download datasheet‍‍‍

SAU115 is a normal open solid state relay, it contains AC output types and DC output types products.For this series,single and two output forms is optional, relay is compatible with the 14FF2Z-C2 series socket which can meet standard industrial din-rail mounting,it also can be used for PCB mounting.

Suitable for driving various actuating components and mechanisms in industrial control, such as contactor drive, solenoid valve drive, three color LED alarm light drive, motor drive, etc.
